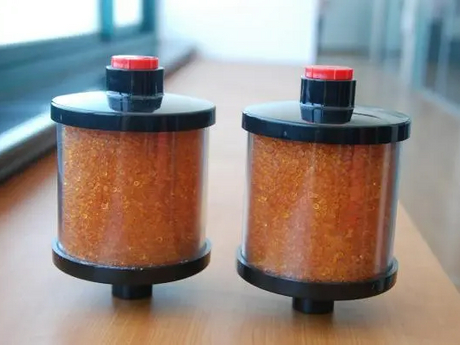

ORANGE SILICA GEL is a heavy metal free, environmental-friendly humidity indicator SILICA GEL for protection of goods and miscellaneous substances widely USED in Transformer Breathers & Air Dryer in Power Sector.

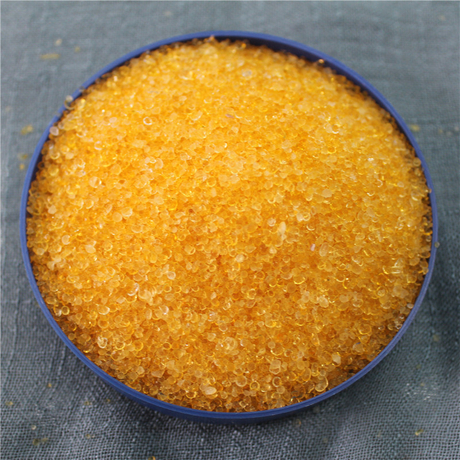

ORANGE SILICA GEL is an alumino-silicate gel in the form of hard Round Shape or Spherical Beads form, with a very high resistance to crushing and a low attrition rate. Orange Silica Gel has a longer life than most other adsorbents and can reduce operating costs in most applications. It is also known as Non-toxic Indicating Silica gel.
Orange Indicating Silica Gel is a spherical/beads type with very high mechanical integrity. The degree of moisture uptake is indicated by a color change from orange to Green & Orange to Colorless at 6 - 8 % weight water absorption. Silica Gel Orange meets the world demand for a heavy metal free and environmental friendly indicating agent.
Orange Silica Gel Available Sizes: 1-3 mm, 2-4 mm, 3-5 mm
Color changing from orange to dark green:
| PROPERTIES | ORANGE SILICA GEL | |
| Chemical Composition | SiO2 - 97%, Al2O3 - 2%, Organic Indicator - <0.01% | |
| Color Indication | Orange-Brown-Green | |
| Assay-as SiO2 | 97-98% | |
| Appearance | Spherical Beads / Round Shape | |
| CHEMICAL PARAMETER: | ||
| PH value | '4-8 | |
| Loss on Drying% | Max 5 % | |
| Adsorption Capacity at 100% humidity | Min 30 % | |
| Bulk Density | 800 gm/ltr | |
| Organic Indicator | <0.01 wt. % | |
| Size | 3 - 5 mm | |
| Qualified Ration Partical Size % | 98 % min | |
| Qualified Ration of Spherical Partials % | 95 % min | |
| Adsorption Capacity | RH=20% | Min. 08-09 % |
| RH=35% | Min. 13-14 % | |
| RH=50% | Min. 22-24% | |
| Color Variation at RH | RH=20% | Light Brown to Yellow |
| RH=35% | Light Brown to Green | |
| RH=50% | Light Blackish to Green | |
| PHYSICAL PARAMETER: | ||
| Surface Area | 700 m3/g | |
| Pore Volume | 0.4 cm3/g | |
| Crush Strength | >200 N | |
| Attrition Rate | >200 N | |
| Chemical Formula of Orange Silica Gel | SiO2 + H2O + C25H30ClN3 | |
| Advantages & Benefits of Orange Silica Gel : | |
| 1 | Indicating status of silica gel without cobalt chloride. |
| 2 | Non - toxic and non flammable silica gel |
| 3 | Environmental friendly type |
| 4 | Acceptable worldwide especially in European countries. |
| 5 | Higher absorption Capacity at low RH |
Applications
Breather
Desiccant
Water filtration
Chemistry
Bulk Packing Options
25kg loose bags
25kg bags palletized
25kg fiber drums
900kg jumbo bags
